Ultra-thin surface-mount series of underwater lights
The EQUATOR series is a compact ultra-thin LED underwater light with built-in driver, designed to allow surface-mount installation on the stern and both sides of the hull below the waterline.
The thickness is only 0.39 inch and to install the EQUATOR the max. diameter of the hole through the hull is 2/5 inch.
|
|
|
|
|---|---|---|---|
| EQUATOR MSR0640 | EQUATOR MSR1280 | EQUATOR MSR36240 | |
| Color of lighting | Single Color (White, Blue, Green) or Multi Color (RGB, WGB, RGBW) | Single Color (White, Blue, Green) or Multi Color (RGB, WGB, RGBW) | Single Color (White, Blue, Green) or Multi Color (RGB, WGB, RGBW) |
| Power consumption | max. 10 W | max. 18 W | max. 51.5 W |
| Luminous flux | max. 1200 lm (white) | max. 2400 lm (white) | max. 7200 lm (white) |
| Dimensions | 3.9 x 2.72 x 0.39 inch | 4.69 x 3.5 x 0.39 inch | 5.47 x 4.29 x 0.39 inch |
| Weight | 0.66 lbs | 0.88 lbs | 1.32 lbs |
| Recommended boat length | Up to 25 ft | Up to 40 ft | Up to and over 65 ft |
The multi-color version of EQUATOR series allows changing the color of lighting manually or automatically through the complete rainbow spectrum.
Advanced electronic design with built-in microprocessor enables network connection and simple control of complete group of lights with dimming.

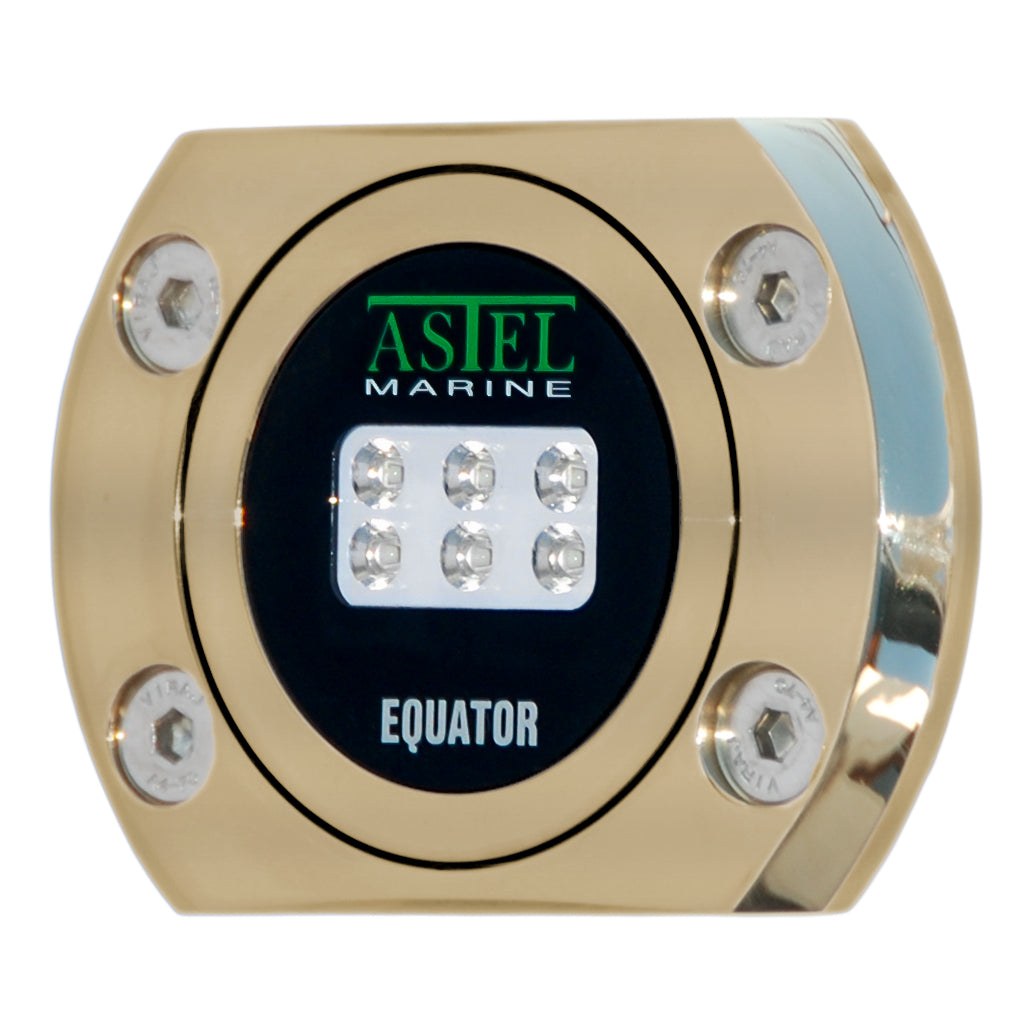

All the models are available in aluminium bronze (AB2) and stainless steel casings. The lighting is available in white, blue, green, WGB or RGB color versions.
Our Main Advantages
-
Easy Surface-Mount Installation
Innovative design of EQUATOR series makes installation of underwater lights an easy job. Four screws and a cable hole require very little hull drilling.
-
Ultra-Thin Patented Design
Our unique ultra-thin casing design allows for endless mounting options below the waterline.
-
Low Power Consumption
By using high-efficiency Cree LEDs and high-grade polycarbonate glass optical window our lights consume less power for the same luminance, making them suitable also for smaller boats and tenders.
Technical Specifications
| Power supply | 12-24 Vdc, max. 840 mA/12 Vdc or 410 mA/24 Vdc |
| Beam Angle | 60° |
| Optical window | High-grade polycarbonate glass |
| Luminous flux | max. 1.130 lm (white) |
| White color temperature | 6.000 – 10.000 K |
| Operating temperature | 14°F – 122°F |

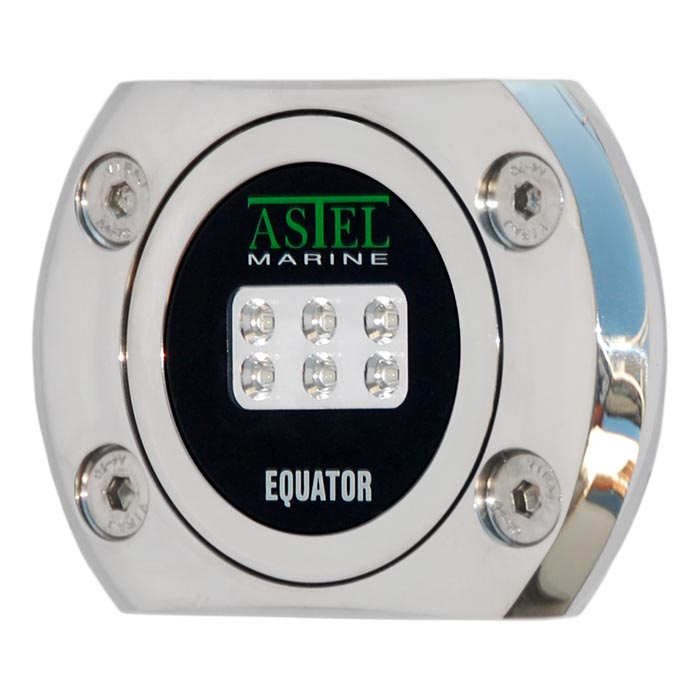

| Casing | Aluminium bronze (AB2) or stainless steel (SAE316L) |
| Protection | IP 68 |
| Dimensions | 3.9 x 2.72 x 0.39 inch |
| Weight | 0.66 lbs |
Change color with the push of a button
EQUATOR series allows you to explore the complete rainbow spectrum by using only a simple momentary switch.
Also supports DMX512 network control for advanced users.
